Configuring Lanes (POSs)

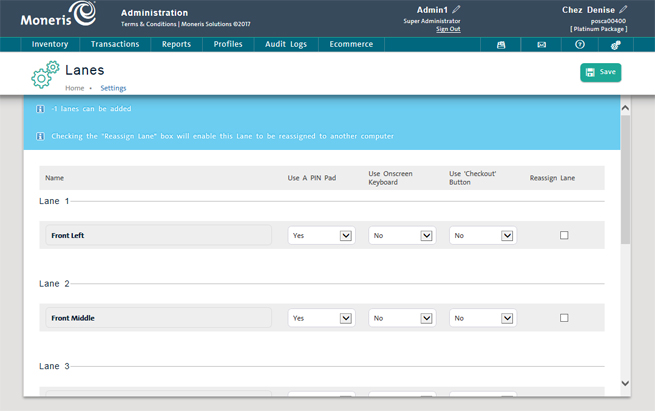

Use the Lanes screen to configure your PAYD Pro PlusTM In-Store lanes (POSs) and onscreen elements in a multi-lane environment.

To display the Lanes screen:

  1. On the PAYD Administration main screen, click the (Configuration) icon.

  2. On the Configuration menu, click Lanes.



To edit a Lane Name:

  1. In the list of lanes, find the lane whose name you want to edit.

  2. Enter a new Name for the lane.

  3. Click the Save button at the top of the screen.



To change a lane's PINpad use indicator:

  1. In the list of lanes, find the lane whose PINpad use indicator you want to change.

  2. Click the Use a Pinpad checkbox as appropriate. A check mark in the box indicates that the lane uses a PINpad.

  3. Click the Save button at the top of the screen.

NOTE: This setting will only be visible to integrated merchants.



To configure a lane for reassignment:

  1. In the list of lanes, find the lane you want to configure for reassignment.

  2. Click the Reassign Lane checkbox. If the checkbox has been replaced with a Set to be reassigned message, the lane is already configured to be reassigned.

  3. Click the Save button at the top of the screen.



To enable a lane's Onscreen Keyboard functionality:

  1. In the list of lanes, find the lane whose Onscreen Keyboard use indicator you want to change.

  2. Select Yes or No from the Use Onscreen Keyboard drop-down list as appropriate.

  3. Click the Save button at the top of the screen.

NOTE: Selecting Yes in this drop-down menu enables both the Virtual Onscreen Keyboard and the Virtual Numeric Keypad for use with touch screen monitors. If you have a physical keyboard, you do not need to enable this feature.  For information on using these onscreen elements, see Using the Virtual Keyboard and Using the Virtual Numeric Keypad.



To enable a lane's Checkout button:

  1. In the list of lanes, find the lane for which you wish to use the 'Checkout' button.

  2. Select Yes or No from the Use 'Checkout' button drop-down list as appropriate.

  3. Click the Save button at the top of the screen.

The Checkout functionality is used in tandem with a customer display device (also called a display pole). Enabling this function enables the customer to see the taxes and grand total on the display device.

For more information on:

NOTE: If you do not have a customer display device connected to this lane, do not enable this feature.
